Description

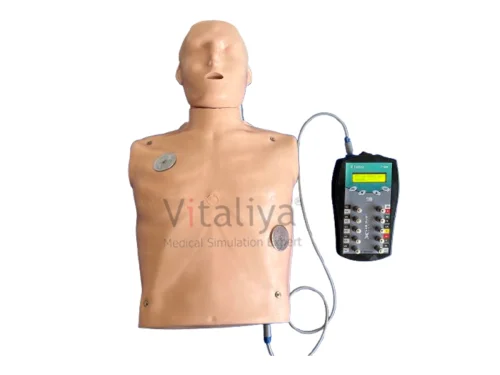

The Resishock manikin is a training manikin to train the skills of
defibrillation (shock delivery) during various scenarios of cardiac
arrest. The Resishock manikin can also be used for simulating
various types of cardiac rhythms.
2. SPECIFICATIONS:
2.1 Manikin specications:
The Resishock has 2 shock ports (Apex & Sternum) to receive
the defibrillator energy.The Lub Dub Resishock manikin is
designed to absorb energy discharges upto 200 Joules in
Monophasic mode and upto 100 Joules in Biphasic Mode.
2.2 Simulator specications:
User Interface:
ON/OFF switch is located at the top of the Unit.
The Keypad includes Rate (BPM) key to adjust the heart rate of
the ECG waveform and mV (Amplitude) Key to adjust the
amplitude of the ECG waveform.
The ECG Digital Simulator-e500 also includes a Arr(Arrhythmia)
up and down key to cycle through the different cardiac rhythms
Press the ENTER key once to change the arrhythmia waveform.
General Specications:
A) Environment:
15°C to 40°C (59°F to 104°F)
10% to 90% Relative Humidity
Indoor Use Only
B) Power Supply:
9V Alkaline battery or
AC/DC Power Supply 9V to 12V
Output Current 500mA
C)Dimensions and Weight:
21.0cm x 12.5cm x 3.3cm
0.45 kg
Simulation Specications:
A) ECG General:
Simulation Type:Full 12-Lead ECG with
independent outputs for each signal lead,
referenced to RL
Amplitude Accuracy: ± 2% (Lead II)
ECG Output : 1V
B) Normal Sinus Rhythm:
Rates: 30,45,60,90,105,120,135,150,180 BPM
Rate Accuracy:± 1BPM
